LIGHT SOURCE
Source: 19x40W RGBW Osram Ostar LEDs
Luminous flux: (4°) 5'505 lm - (54°) 10'143lm @full
Lux: (4°) 45'146 lx - (54°) 1174lx @5 m full
Source life expectancy: > 50.000 h OPTICS
Zoom: 4° - 54° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
Colour mixing: RGBW / FC
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 233°
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: RAL 9004 CONTROL
Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels: main personality 29 / 32 / 53channel
Pixel control: OFF, ring and pixel2pixel
Wireless Control: included, Wireless Solution transceiver
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included | | ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 620W
Output (at 230V): 4 units on a single power line
Power factor: > 0,95 PHYSICAL
IP rating: 20
Cooling: forced air with fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Neutrik Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 410x514x250mm
Weight: 17,4kg BOX CONTENT

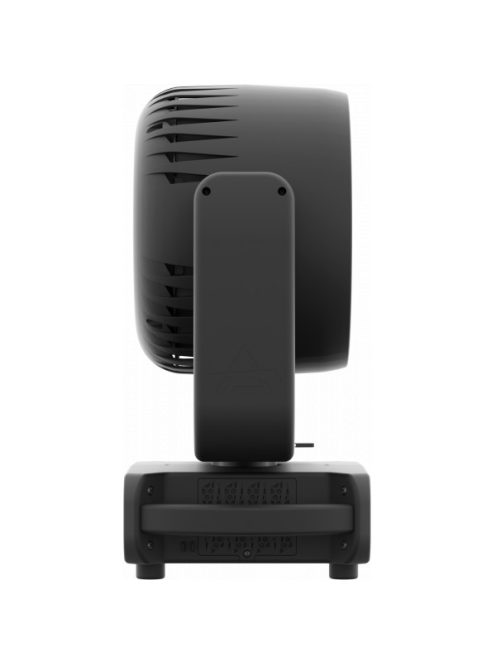

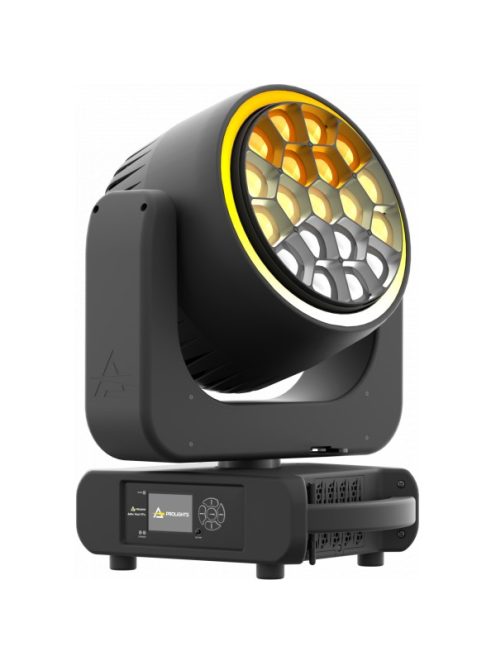

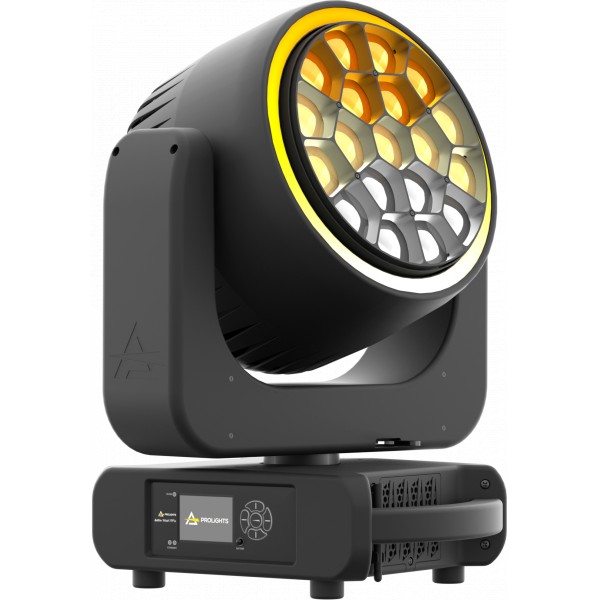

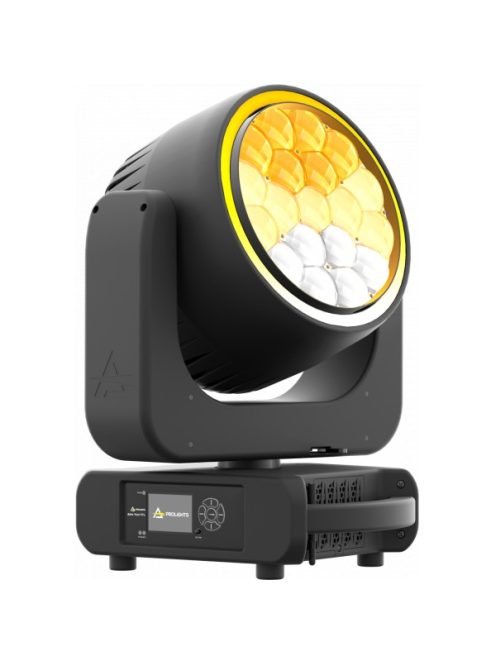

1 x ASTRAWASH19PIX
1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
2 x OS24
User Manual |
