LIGHT SOURCE
Source: 150W COB RGBW / FC LED
Luminous flux: (18°) 3'530 lm - (38°) 3'172lm
Lux: (18°) 2'558lx @3 m full
Lux: (38°) 645lx
Source life expectancy: > 50.000 h
OPTICS
Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
Field angle: (on-board) 36° - (inc) 63°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 38° (inc)
COLOUR SYSTEM
Colour mixing: RGBW / FC
CCT: CCT control through dedicated DMX channel
White presets: 2.000 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY

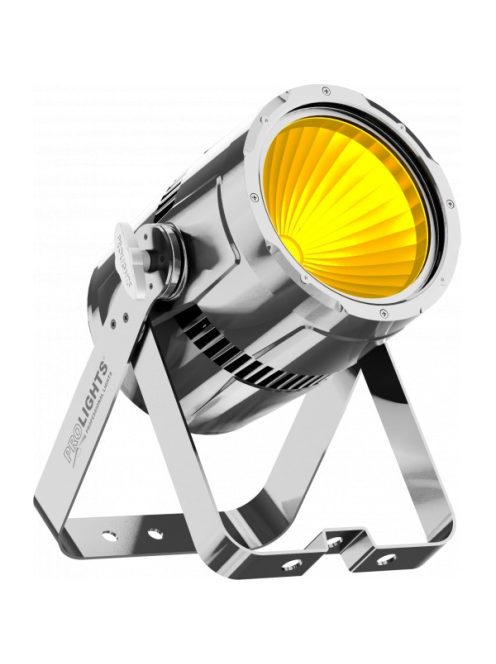

Body: sturdy die-cast aluminium body

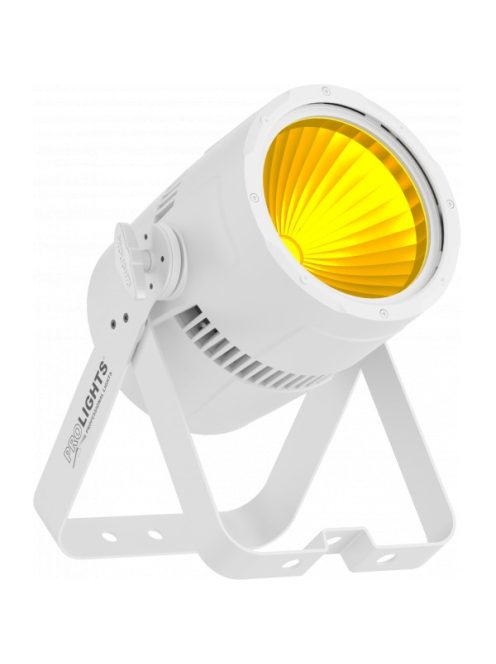

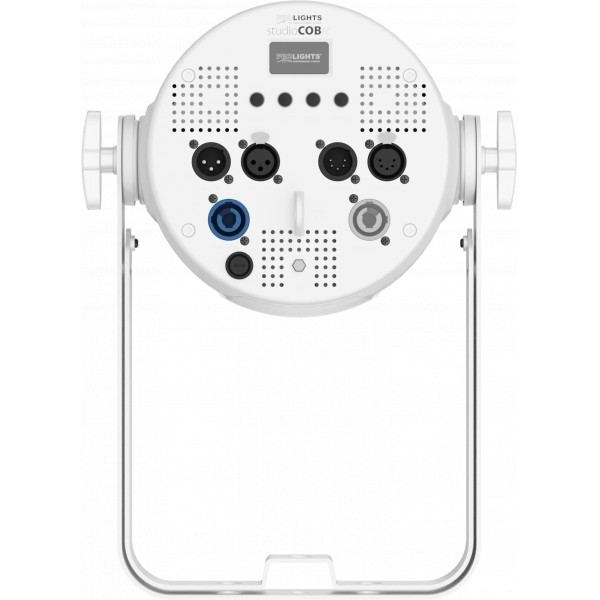

Body colour: black, white finishing available
CONTROL
Protocols: DMX512, RDM
DMX channels: 4 / 6 / 10channel
RDM: RDM for remote monitoring and settings
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain
|
|
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 140W
Max power consumption (at 120V): 145W
Output (at 230V): 12 units on a single power line
Power factor: 0,96
PHYSICAL
IP rating: 65 for temporary outdoor application, not for fixed installations

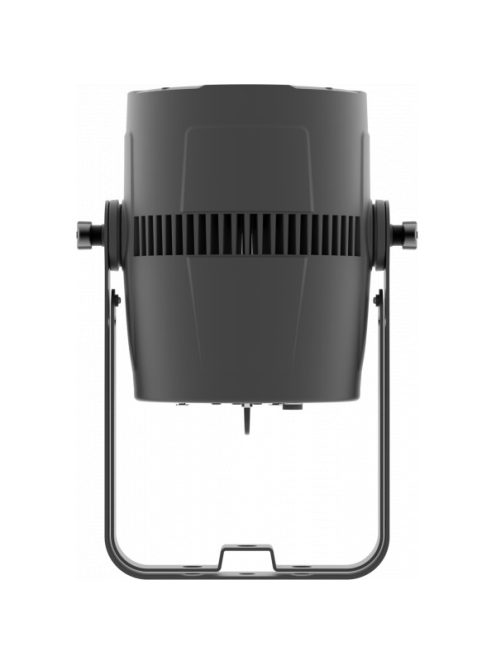

Cooling: active, silent operation
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

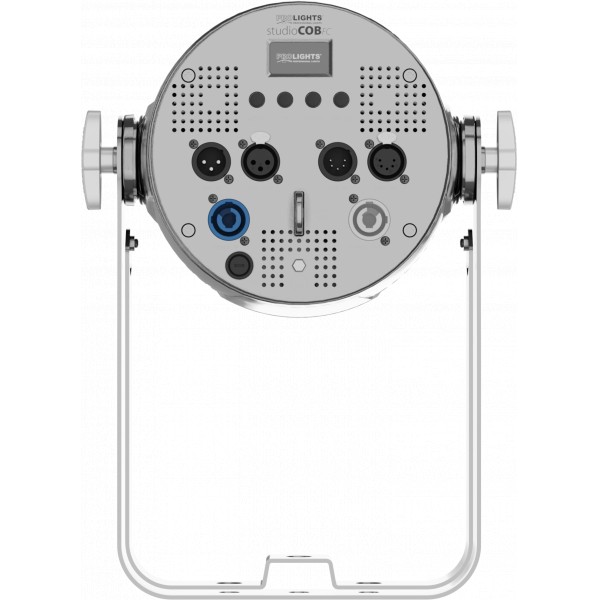

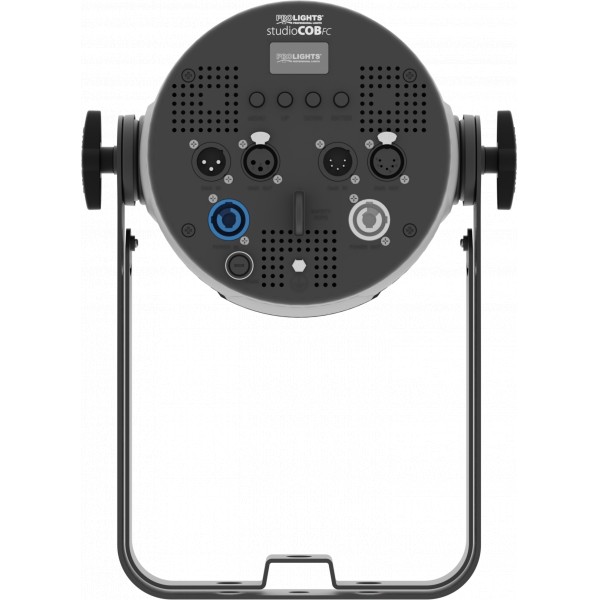

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 259x187x370mm
Weight: 5,6kg
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
1 x STUDIOCOBPLUSFC
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
User Manual
|
