LIGHT SOURCE
Source: 230W high-power white LED
CCT: (TU) 3.200 K - (DY) 5.600K
Luminous flux: (TU) (17°) 10'842 lm (42°) 13'320lm @full
Luminous flux: (DY) (17°) 12'546 lm (42°) 15'623 lm @ full
Lux: (TU) (17°) 3'728 lx - (42°) 1'019lx @5 m full
Lux: (DY) (17°) 4'260 lx - (42°) 1'182lx @5 m full
CRI: (TU) >98 - (DY) >95
R9: (TU) >90 - (DY) >90
TLCI: (TU) >98; (DY) >95
TM30 Rf: (TU) >92; (DY) >89
TM30 Rg: (TU) >99; (DY) >98
Source life expectancy: > 50.000 h
OPTICS
Zoom: 17° - 42° half peak angle
Lens diameter: 8'' - 200mm
Lens type: fresnel zoom lens
Other: barndoor and gel frame included
COLOUR SYSTEM
Colour mixing: white
DYNAMIC EFFECTS
Static colour mode: selection of static dimmer
Manual colour mode: manual adjust of dimmer throught menu and knob
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: included filter frame, 8 doors barndoor, spigot
Pan angle: (for pole operated version) 360° with manual regulation
Tilt angle: (for pole operated version) 340° with manual regulation
Body: sturdy die-cast aluminium body
Body colour: black
Other: Spigot 28 mm
|
|
CONTROL
Protocols: DMX512, RDM, rotatory knob
DMX channels: ch1: 1 / 2 - ch2: 2 / 3 / 5channel
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
Other: 16bit control of dimmer
ELECTRONICS
Dimmer: linear 0 ~ 100%, manual knob dimmer
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240 V – 50/60 Hz
Max power consumption: 210W
Output (at 230 V): 10 units on a single power line
Power factor: 0,95
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20

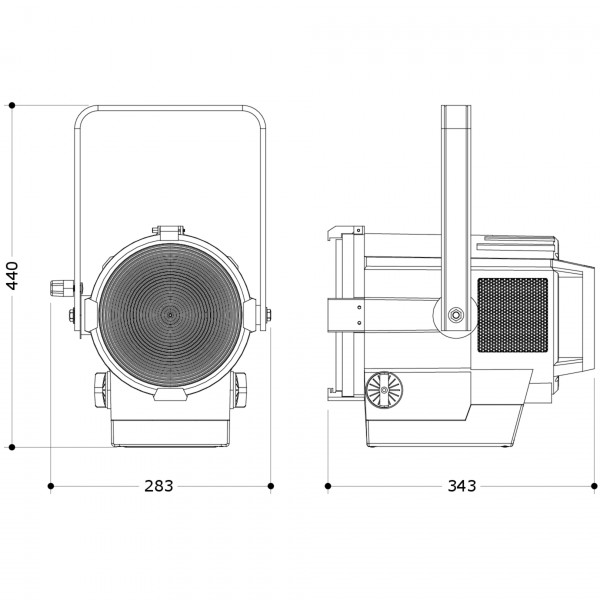

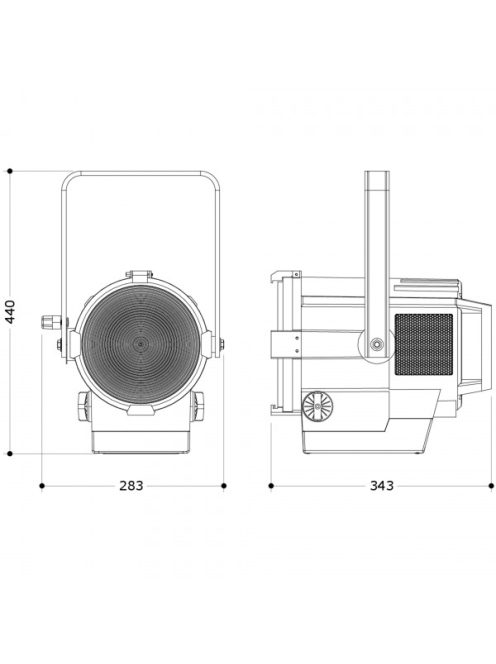

Dimensions (WxHxD): 283x440x343mm
Weight: 7,5 kg - (for pole operated version) 9,7kg
|
