LIGHT SOURCE
Source:230W
high-power white LED
CCT:(TU) 3.200 K - (DY) 5.600K
Luminous flux:(TU) (17°) 10'842 lm (42°) 13'320lm
@full
Luminous flux:(DY) (17°) 12'546 lm (42°) 15'623 lm @ full
Lux:(TU) (17°) 3'728 lx - (42°) 1'019lx
@5 m full
Lux:(DY) (17°) 4'260 lx - (42°) 1'182lx
@5 m full
CRI:(TU) >98 - (DY) >95
R9:(TU) >90 - (DY) >90
TLCI:(TU) >98; (DY) >95
TM30 Rf:(TU) >92; (DY) >89
TM30 Rg:(TU) >99; (DY) >98
Source life expectancy:>50.000h
OPTICS
Zoom:17° - 42°
half peak angle
Lens diameter:8'' - 200mm
Lens type:fresnel zoom lens
Other:barndoor and gel frame included
COLOUR SYSTEM
Colour mixing:white
DYNAMIC EFFECTS
Static colour mode:selection of static dimmer
Manual colour mode:manual adjust of dimmer throught menu and knob
Auto mode:built-in programs with execution speed adjustment
BODY
Hardware on-board:included
filter frame, 8 doors barndoor, spigot

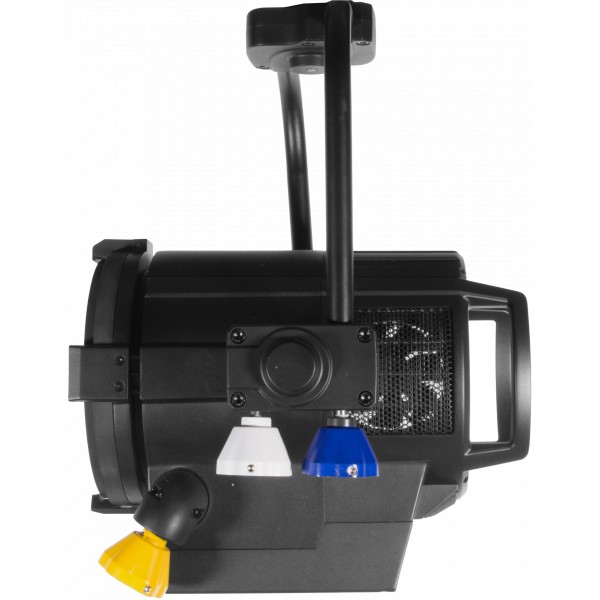

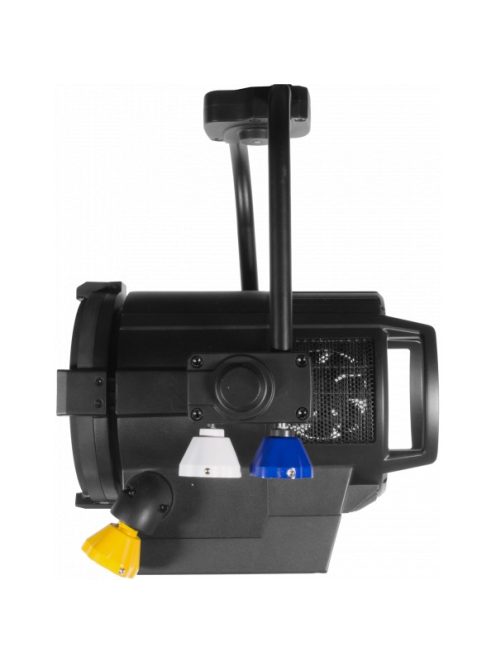

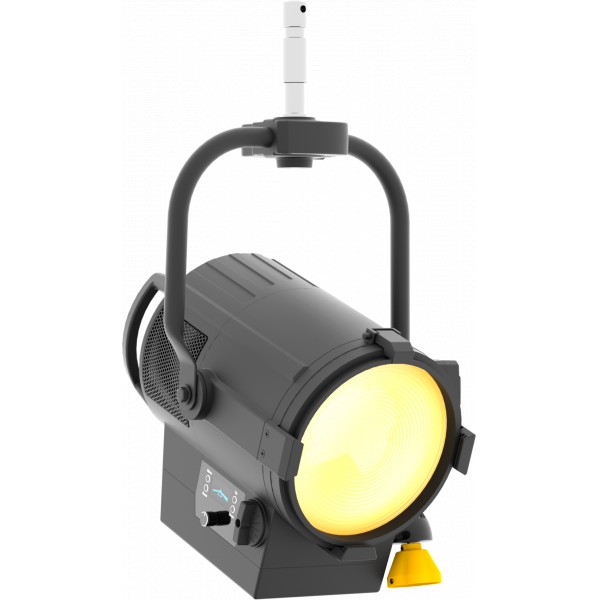

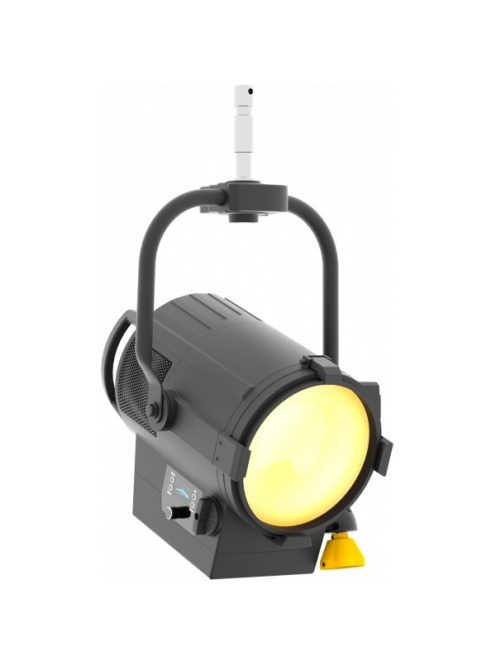

Pan angle:(for pole operated version) 360°
with manual regulation
Tilt angle:
(for pole operated version) 340°
with manual regulation
Body:sturdy die-cast aluminium body
Body colour:black, white finishing available
Other:Spigot 28 mm
|
|
CONTROL
Protocols:DMX512, RDM, rotatory knob
DMX channels:
ch1: 1 / 2 - ch2: 2 / 3 / 5
channel
RDM:RDM ready for remote monitoring and settings
Display:Graphic User Interface
Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:for synchronised operation of more units linked in a chain
Other:16bit control of dimmer
ELECTRONICS
Dimmer:linear 0 ~ 100%, manual knob dimmer
Dimmer curves:selectable dimming modes available
Strobe / shutter:1 - 30
Hz, electronic
Operating temperature:-10° ~ +45°
LED Control:flicker free frequency with adjustable PWM
Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
Mains power supply:100-240 V – 50/60 Hz
Max power consumption:210W
Output (at 230 V):10
units on a single power line
Power factor:0,95
PHYSICAL
Cooling:combination of heat pipe cooling system and low noise fan
Suspension and fixing:bracket for hanging and positioning
Signal connection:Amphenol XLR 5p IN/OUT connectors
Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
IP rating:20

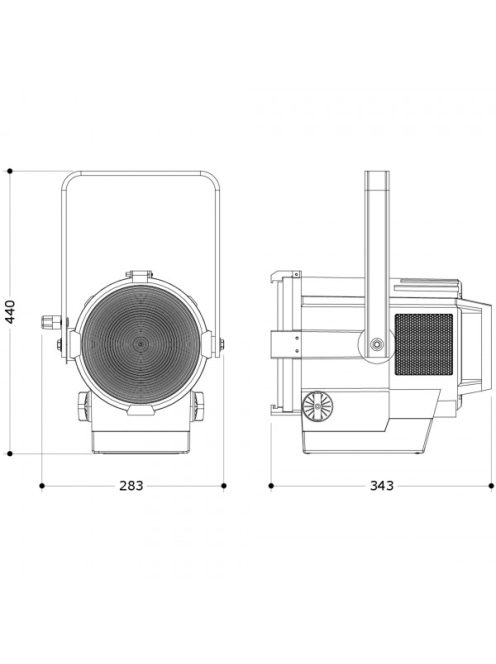

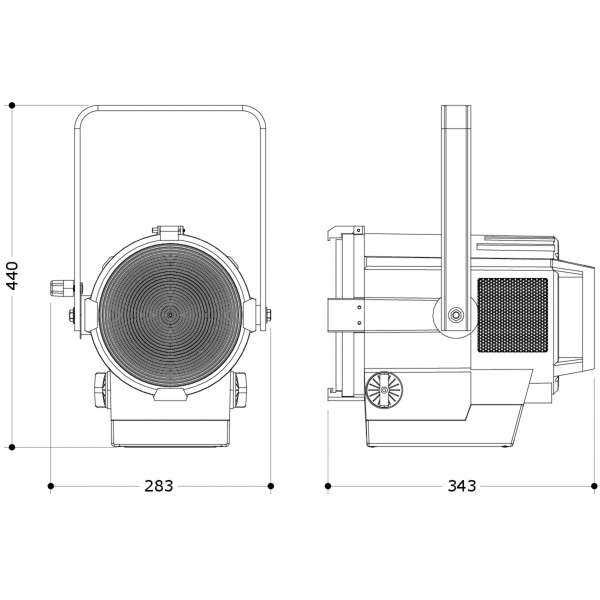

Dimensions (WxHxD):
283x440x343mm
Weight:7,5 kg - (for pole operated version) 9,7kg
|
