LIGHT SOURCE
Source: 280W S Osram Sirius HRI
CCT: 7.800K
Luminous flux: 9'826lm

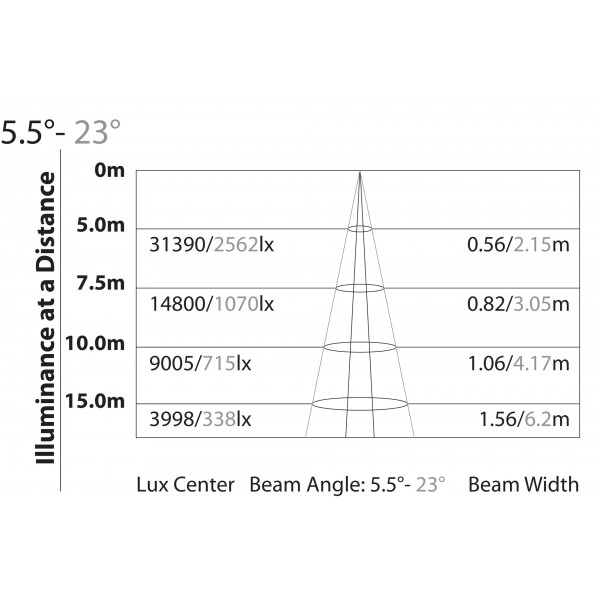

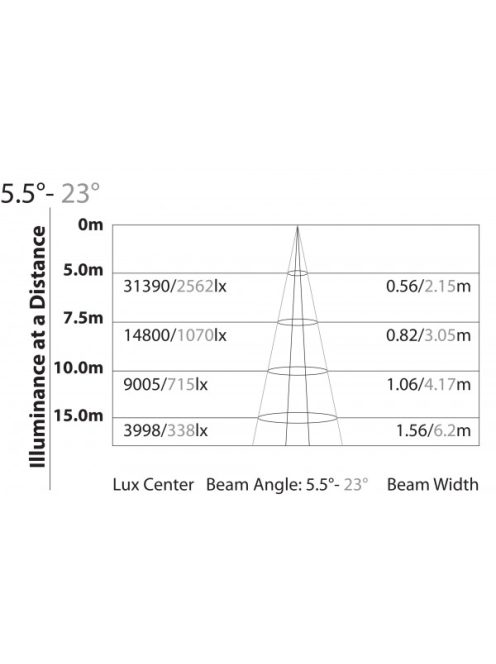

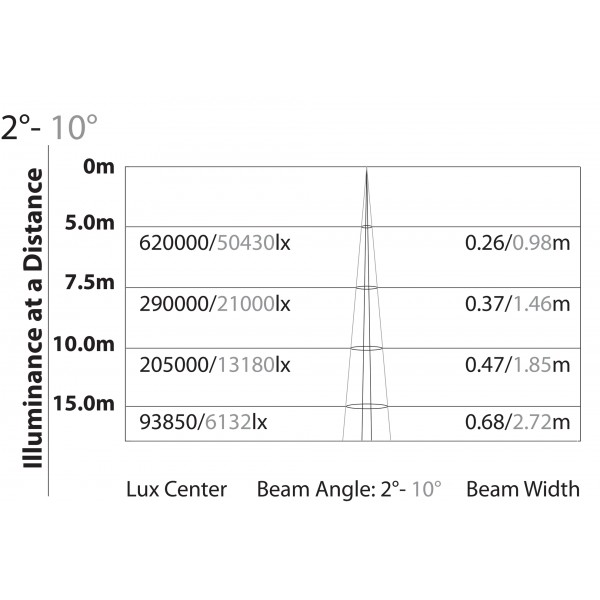

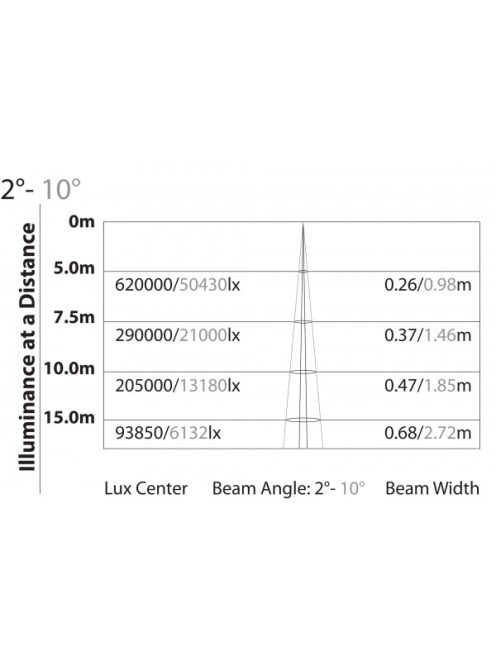

Lux: (2°) 31'390lx @5 m
Lux: (5.5°) 2'562lx @5 m
Source life expectancy: 2.000 h
OPTICS
Zoom: beam: 2° - 10° / spot: 5,5° - 23° motorised linear zoom
Lens diameter: 117mm
Lens type: high-quality glass lens optics
Additional optics: heat filter to switch from beam to spot modes
Focus: motorised with auto-focus
COLOUR SYSTEM
CTC: on wheel 2.500 K and 3.200 K + CTB
Colour wheel: 13 colour filters
Macros: linear, half colours, colour bounce
DYNAMIC EFFECTS
Rotating gobos: 9 rotating gobos + open, interchangeable
Gobo size: outer: 15,7 mm - image: 12 mm - thickness: 1,1 mm
Fixed gobos: 14 fixed gobos + open
Circular prism: 8f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: frost unit to soften the beam edge
BODY
Pan angle: 630° - 540°
Tilt angle: 265°
Pan/Tilt resolution: bit 8 / 16 bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black
|
|
CONTROL
Protocols: DMX512, RDM, W-DMX
DMX channels: 14 / 16 / 22 / 23channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
ELECTRONICS
Dimmer: linear 0 ~ 100% mechanical dimmer
Strobe / shutter: 1 - 25 flash(s), mechanical
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -10° ~ +45°
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 423W
Power consumption (at 120 V): 423W
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: any position with quick-lock omega brackets

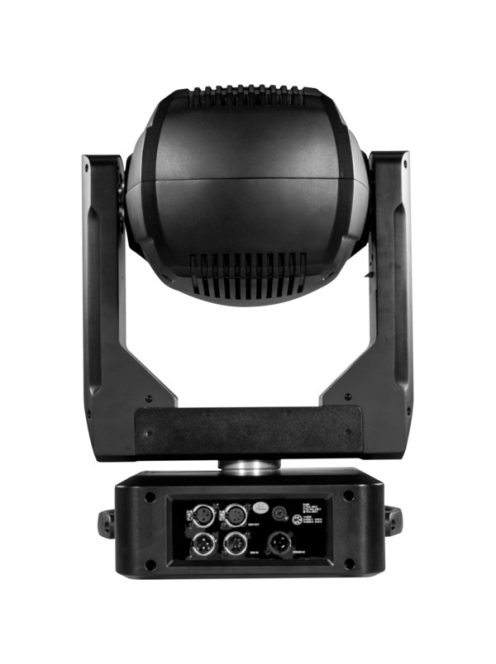

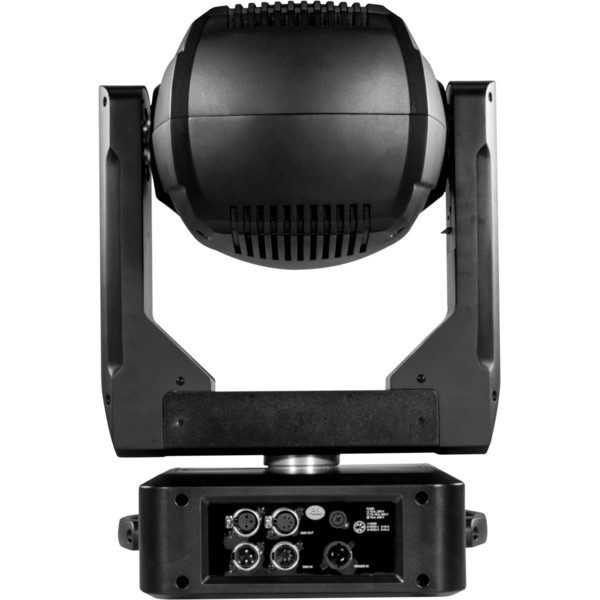

Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN connector
IP rating: 20

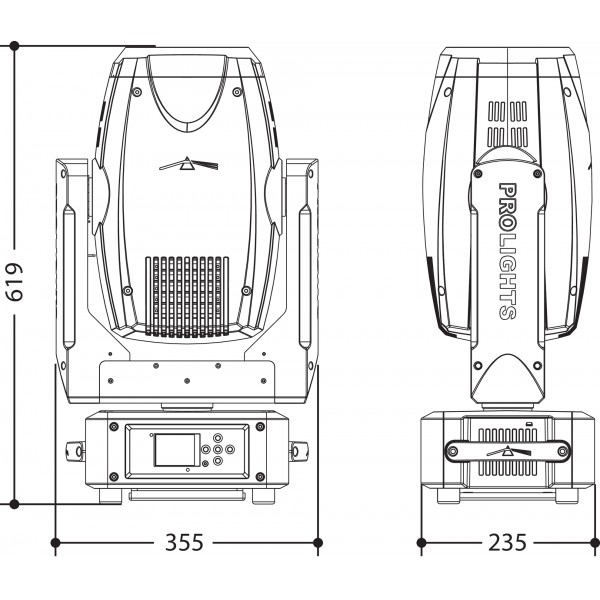

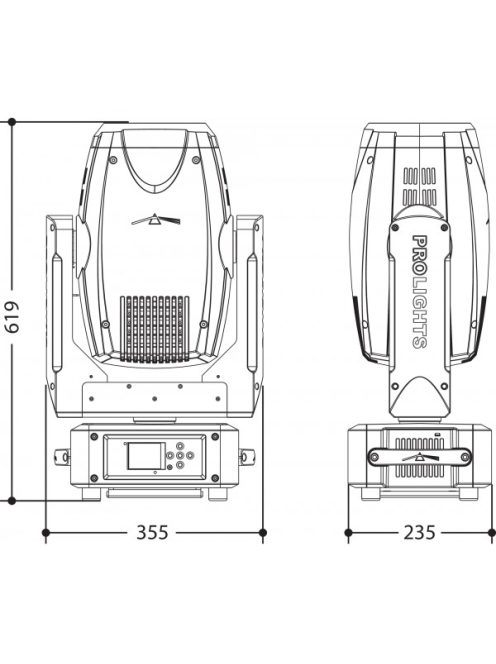

Dimensions (WxHxD): 355x619x235mm
Weight: 17kg
|
