LIGHT SOURCE
Source:70W
RGB + lime LEDs
CCT:2.800 K - 8.000K
Luminous flux:(24°) 151 lm - (82°) 732lm
@full
Lux:(24°) 27 lx - (82°) 18lx
@5 m full
CRI:81 @ 6000K
R9:91 @ 6000K
TLCI:80 @ 6000K
TM30 Rf:80 @ 6000K
TM30 Rg:104 @ 6000K
Source life expectancy:>50.000h
OPTICS
Zoom:24° - 82°
half peak angle
Lens diameter:3,93'' - 100mm
Lens type:Fresnel zoom lens
Additional optics:20° filter on board
Other:spigot not included; gel frame and barndoors included
COLOUR SYSTEM
Colour mixing:RGBL
CTC:CTC control through dedicated DMX channel and amber shift activation by DMX
White presets:2.800 K - 8.000K
Colour wheel:virtual colour wheel with macros
Macros:several pre-build macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode:selection of static colour
Manual colour mode:manual adjustment of colour
Auto mode:built-in programs with execution speed adjustment
Special features:linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body:sturdy die-cast aluminium body
Body colour:black
|
|
CONTROL
Protocols:DMX512, RDM, rotatory knob
DMX channels:
1 / 2 / 3 / 4-1 / 4-2 / 5 / 9 / 6 / 7 / 9-1 / 9-2 / 12 / 14 / 17
channel
RDM:RDM ready for remote monitoring and settings
Display:Graphic User Interface
Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:for synchronised operation of more units linked in a chain
Other:16bit control of dimmer and colour
ELECTRONICS
Dimmer:linear 0 ~ 100% electronic dimmer
Dimmer curves:4
selectable dimming modes available
Strobe / shutter:1 - 30
Hz, electronic
Operating temperature:-10° ~ +40°
LED Control:flicker free frequency with adjustable PWM
Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
Mains power supply:100-240 V – 50/60 Hz
Max power consumption:25W
Power factor:>0,55
PHYSICAL
Cooling:passive cooling and fan-free
Suspension and fixing:bracket for hanging and positioning
Signal connection:DMX 5p IN/OUT
Power connection:16 A Schuko plug
IP rating:20

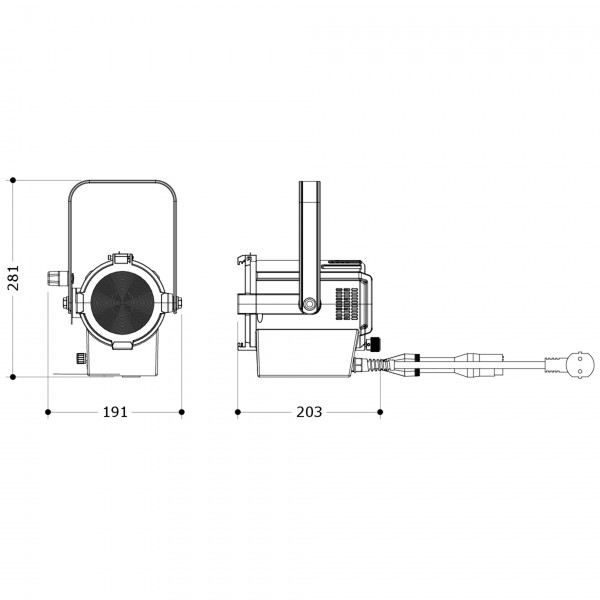

Dimensions (WxHxD):
191x281x203mm
Weight:2,52
kg
|
